HXD-1000TMB/LCD 液晶屏显示自动转塔数显显微硬度计
产品介绍

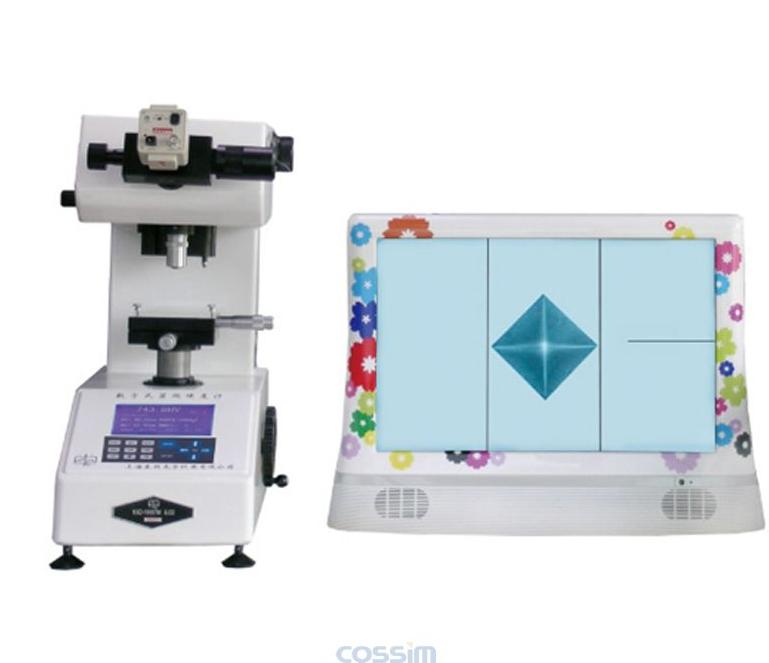

本机是在数显显微硬度计主机上,通过CCD彩色摄像头光学接筒, 19吋彩色液晶显示器,直接能在显示器测量和操作,不仅提高了测量精度,还体现了像质清晰度,放大2000倍减少了在测量操作过程中的人为误差,并且可以观测金相组织。一机两用专为金属材料、玻璃、陶瓷、显微工件测量要求较高的行业配置,在国内率先推出后深受大专院校、科研单位、国企和私企的欢迎,也受到外商的青睐。
This design is based on digital hardness tester, added with CCD camera.19’TV which shows the measured picture. increased the accuracy of the measurement, shows the clear view of picture and decrease the error due to the human operation .therefore upon the release .it is welcomed by the university, science unit state and private owned enterprises. as well as foreign company.
技术参数
型号 Type
|
HXD-1000TMB/LCD
|
物镜/压头切换
Lens/Indenter switch
|
自动完成物镜与压头转塔过程
With Motorized Turret
|
转塔定位误差
Position accuracy
|
2μm以内
Not greater than 2μm
|
试验力
Test force
|
0.0981,0.2452,0.4903,0.9807,1.961,2.942,4.903,9.807 ( N)
10, 25, 50, 100, 200, 300, 500, 1000 (gf)
|
加荷方式
Loading mode
|
程控自动加荷,保荷和卸荷
Program-controlled application, duration and removal of load
|
保荷时间
Duration time
|
5 – 60 sec selectable, 步长 (In step of ) 5 sec. |
硬度测量范围
Measuring range
|
5 HV – 3000 HV以上above
硬度示值误差Indication error≤3%
|
测微目镜Microscope |
物镜Objective |
40x 10x
|
目镜Eyepiece |
目镜 Eyepiece: 15x(可选配Optional:10X)
|
显示器上放大倍率
Magnify on TV
|
约2000X
About 2000x
|
最小计数单位
Min detection
|
0.01μm
|
最小检测单位
Min. detection
|
0.025 μm
|
X-Y测试台
X-Y stage
|
尺寸 Dimensions:100×100mm
最大移动 Travel range:25×25 mm
最小读数Resolution:1/100mm
|
光路切换
Optical path
|
双光通道(测量/摄影切换)
Measurement / Photo switch
|
测量读数方式
Reading mode
|
目镜或视屏测量,数字显示,打印输出硬度值,平均值,最大最小值,不均匀度,标准偏差,LCD可显示洛氏HRC HRA转换值等Digital, Measurement with eyepiece or on TV. Print-out Hardness values Average, Divergence,, Standard deviations, |
数据输出
Data output
|
RS232接口
RS-232 interface
|
试件最大高度
Max. test height
|
85mm/90mm
|
执行标准(或参照)
Standards concerned
|
中国国家标准 GB/T 4340
国际标准ISO 6507,美国标准ASTM E384,日本标准 JIS B7734
|
电源 Power supply |
220 VAC, 50/60 Hz
|
尺寸 Dimensions |
外包尺寸 Main tester:540×500×600 mm, 外包尺寸 Main tester:670×530×780 mm |
重量weight |
主机净重:38kg 毛重:47 kg
|
包装清单
标准配件,附件
Standard attachments
|
物镜40x,10x, 标准硬度块(700HV1 400HV0.2 小圆柱体夹紧器、15X测量目镜、维氏压头(在机上)、X-Y工作台、薄片夹紧器、平口钳、水平仪、冷光源灯泡、电源线、保险丝、辅助工具、使用说明书、打印机(内置)、19吋彩色液晶显示器、CCD彩色摄像头 |
可选购件
选购件Options |
镶嵌夹具Clamp for metallographic specimen
HK努氏压头 Knoop indenter
数码相机及适配镜 Digital camera & adaptor
可增配第3个物镜The third objective
|
|
